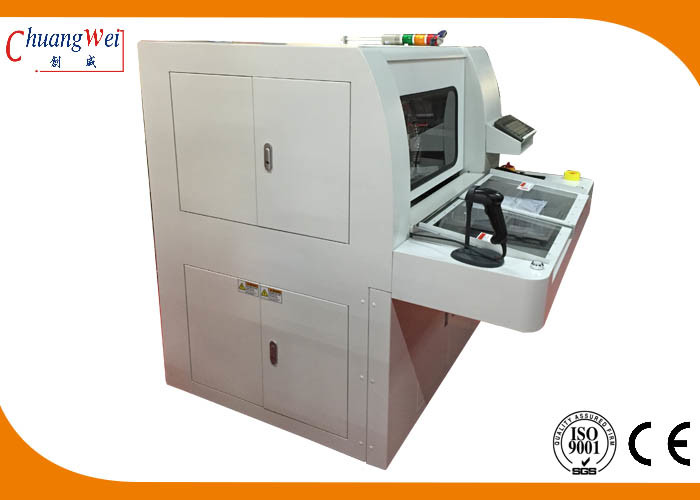

PCB Router Cutting Machine for Tab-routed PCBA Depaneling Solution
Features:
1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .
8. Cut down PCB cost because need not making V-groove on PCB
Specification:
| I. Hardware | |
| System models / types | Windows XP Professional |
| Overall | |
| FootPrint (LxWxH) | 800mm*850mm*1700mm |
| Weight (Approximate) | 150KG |
| Adjustable machine footings (for height) | 60~110mm |
| Manipulator | |
| Manipulator Motor | Panasonic MINAS A5 series |
| Manipulator Repeatability | 0.001mm |
| Axis configuration | |
| Maximum Axis Travel (X,Y,Z) | 400mm*650mm*50mm |
| Work station | |
| Board Positioning | Fixture positioning, thimble universal positioning, vision correction |
| Loading/Unloading | manual |
| Routing Range | 320mm*320mm |
| Panel Thickness | 3mm |
| Fixturing | |
| Rigid Fixturing | Universal thimble & anti-static fixture |
| Top Clamp | Using hole positioning |
| Spindle Motor | |
| Power | 100W |
| Max. speed | 60000rpm/min |
| Cooling | Natural cooling and air-cooled |
| Router bit size | 3mm*3mm |
| Tool change | Use Special wrench |
| Routing capability | |
| Max routing speed | 100mm/s |
| Repeatability | 0.02mm |
| Vacuum System | |
| Power | 0.75KW220V Single-phase motor |
| Filtration | Vertical and horizontal |
| Utilities | |
| Power | 1.5KW AC220V |
| Air supply | 4~5KG/cm2 |
| II. Software and Programming | |
| System platform | Windows XP Professional (Service3,v.3244) |
| System Stability | 24 hours without exception |
| Vision system | Precision CCD vision alignment correction system (SONY 250 series) |
| Programming | |
| On-line | Online Programming |
| Editing function | Straight, diagonal, circular arc, circle |
| No. of Programs that can be installed | select a storage location according to client's requirement |
| Configure CCD Camera for programming | Fangchen F130 High Precision CCD |
| Toolbit Diameter Compensation | Provide different angles to compensate for the user to choose different shapes |
| Filter Change Interval (distance) setting | automatic cleaning filter and dust to dust collection box when processing is completed centralized each time |
| Operation Monitors | |
| 3-color Tower Light | 3-color light monitor the machine's working conditions |
| Tool Break Detection | Automatic detection of tool life & using time |
| Motor Overheat Detection | overheating, overload, low voltage protection function |
| Servo Overload Detection | Overload, the line is normal, low-voltage protection function |
| Tool Life Tracking | tool life time detection |
| PCB Board Counter | cutting item,cutting counting, diversified way of counting. |
| Vacuum Filter Change Alarm | not use to vacuum filter |
| Machine Error History | The software automatically records all alarms memory |
| III. Accuracy | |
| Axis positioning accuracy | 0.01mm |
| Routing Accuracy | 0.02mm |
| IV. Safety | |
| Enclosed Work Area | Using four seal protection |
| Door Interlock Sensors | micro-switch sensor |
| Emergency Stop Button | Yes |
